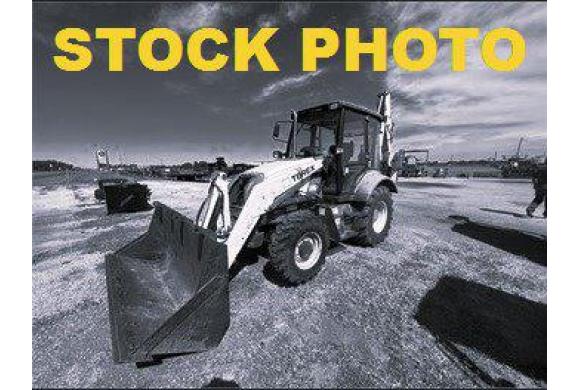

Published: 06/25/2024 12:55 PM 2007 Terex 760B Backhoe For Sale In Spring Arbor, Michigan 49283
Get ready to maximize your efforts in the field with this 2007 Terex 760B Backhoe. This durable Backhoe has been very well maintained, which has enabled its work ready condition. It comes fully loaded with options and features that are perfect for any hard-working individual.
Highlights Include:
Full Cab With Heat/AC
4x4
Aspiration: turbocharged
Displacement: 269 cu in (4,408 cu cm)
Engine Model: 1004C-44TL
Gross Power: 92 hp (69 kw)
Net Max Torque: 275 lbs ft (373 nm)
Net Power: 86 hp (64 kw)
Power Measured @ 2200 rpm
Torque Measured @ 1400 rpm
Max Speed: 23 mph (37 kph)
Max Speed - Reverse: 23 mph (37 kph)
Number of Forward Gears: 4
Number of Reverse Gears: 4
Transmission Type: Carraro power shuttle
Dig Depth: 15 ft (4 m)
Dig Depth - Extended 19 ft (6 m)
Load Height - Extended 15 ft (4 m)
Reach at Load Height - Extended 9 ft (3 m)
Reach From Swivel 19 ft (6 m)
Reach From Swivel - Extended 24 ft (7 m)
Ground Clearance 1 ft (0 m)
Height to Top of Suspended Cab 9 ft (3 m)
Transport Length 24 ft (7 m)
Transport Width 8 ft (2 m)
Wheelbase 7 ft (2 m)
Pump Flow Capacity 38 gpm (142 lpm)
Pump Type Load-sensing twin gear pumps
Relief Valve Pressure 3250 psi
Bucket Breakout Force 10,485 lbs (4,756 kg)
Bucket Capacity 1 cu yd (1 cu m)
Bucket Width 91 in (231 cm)
Clearance at Max Dump Height 8 ft (3 m)
Dig Depth 7 in (19 cm)
Reach at Max Dump Height 2 ft (1 m)
Alternator Supplied Amperage 75 amps
Cooling System Fluid Capacity 4 gal (16 l)
Front Axle Fluid Capacity 3 gal (13 l)
Fuel Capacity 34 gal (130 l)
Hydraulic System Fluid Capacity 38 gal (143 l)
Max Weight 15,151 lbs (6,872 kg)
Oil System Fluid Capacity 2 gal (9 l)
Operating Voltage 12 volts
Operating Weight 15,151 lbs (6,872 kg)
Rear Axle Fluid Capacity 5 gal (18 l)
Tire Size Front - 2wd / 4wd 12.5/80x18
Transmission Fluid Capacity 4 gal (15 l)
Turning Radius 13 ft (4 m)
Rear Tires Size 19.5Lx24
And So Much More!!
